Product Details

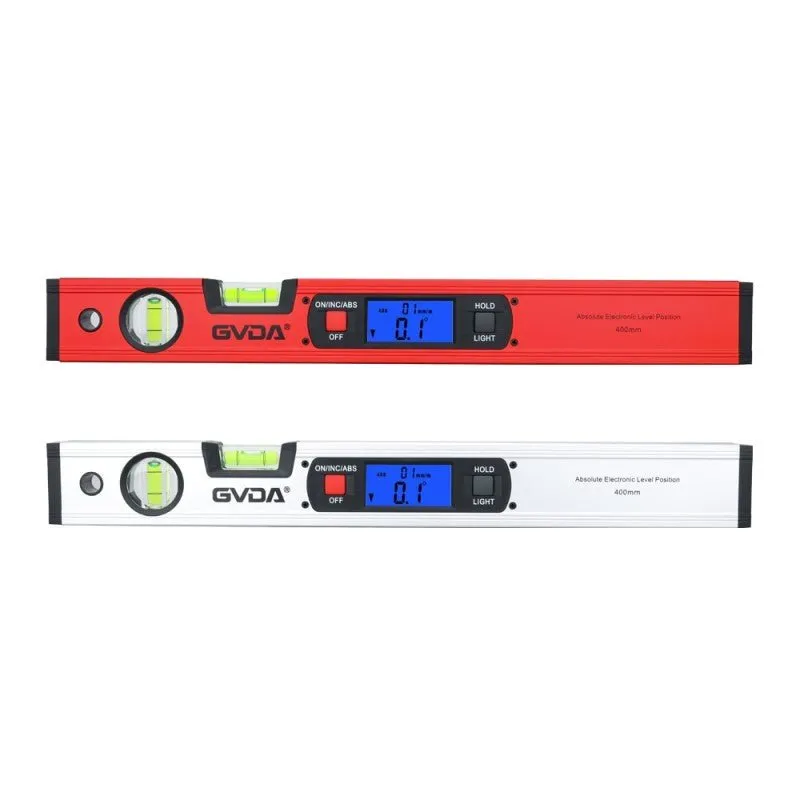

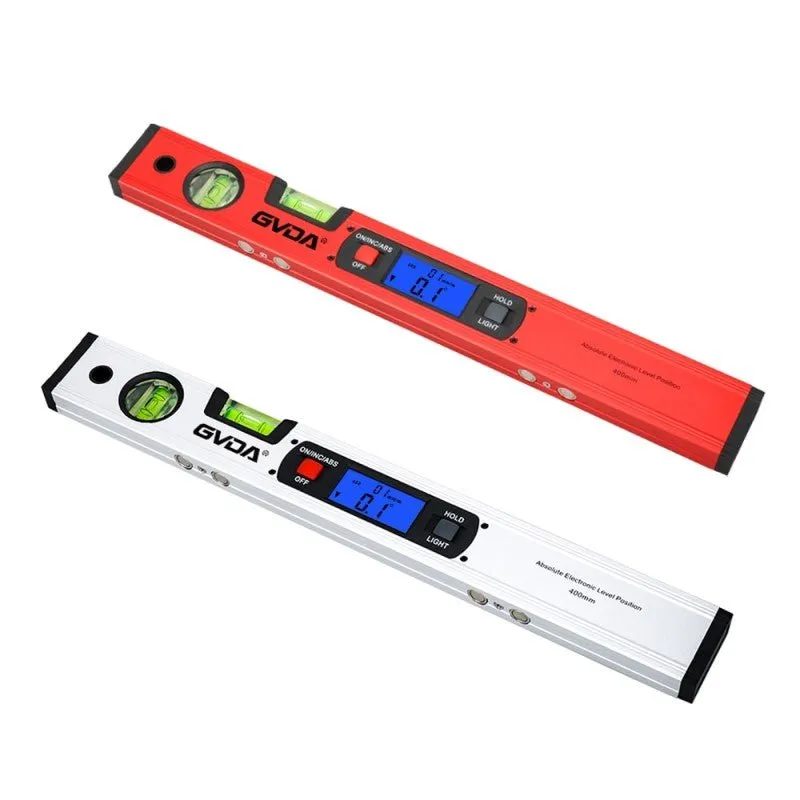

＋GVDA 360 degree Magnetic Goniometer Angle Slope Meter Ruler Digital Inclinometer Protractor Electronic Spirit level Bubble Box
GVDA digital level measure all angles in either 360°range or four 90°quadrants. It can display both degree and slope .
have two versions--with magnets on the buttom and without magnets. Display is always in upright position which best specially when
working overhead. Not only this instrument can measure the horizontal and vertical surface,
it also can measure the angles of all slopes rise & fall.
Features
- Precision:0.1°, Accuracy: 0.2°

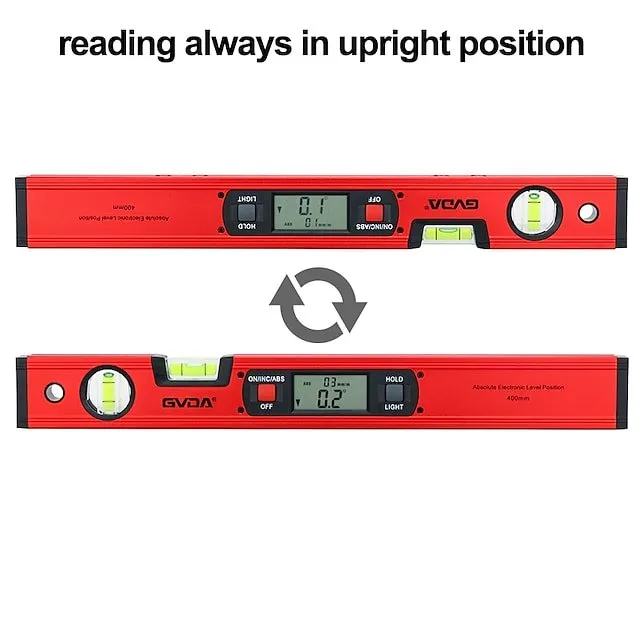

- Flip-up LCD,reading always in upright position
- Measuring range of 0~360°
- Hold function to freeze measurements
- Absolute measurement and relative measurement conversion
- Automatic power off after 5 minutes
- Measures precise inclines in degree or mm/m (up to 100mm/m)
Specifications
- Brand Name: GVDA
- Model No.: GVDA-H400M
- Name: Digtial Spirit Level
- Measuring Range: 4 x 90° (0~360°)
- Resolution :0.1°
- Accuracy: 0~90°≤0.1°; the rest ≤0.2°
- Working current : < 100µA
- Work temperature : 5~50°C
- Work humidity : ≤85% RH

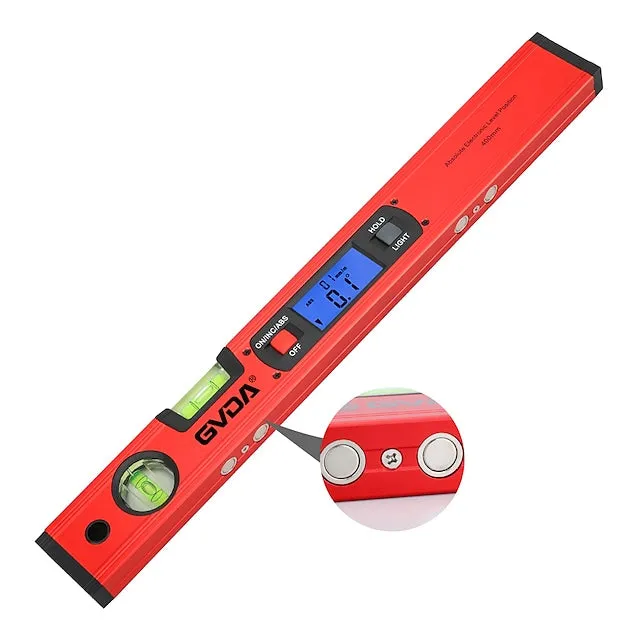

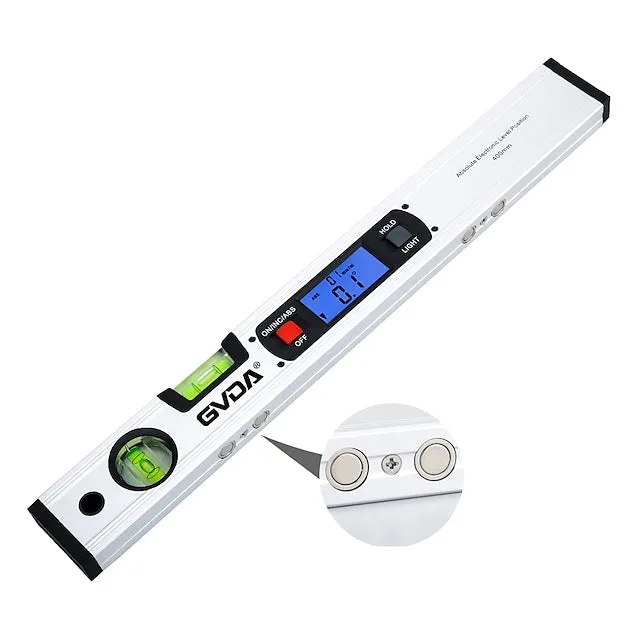

- Magnet (optional): 4 built-in on base plate
- Product Weight/Size: 260g / 416x50x21mm
- Package Weight/Size: 315g / 435 x 60 x 30mm
- Power Supply: 2x1.5V AAA battery (not include)

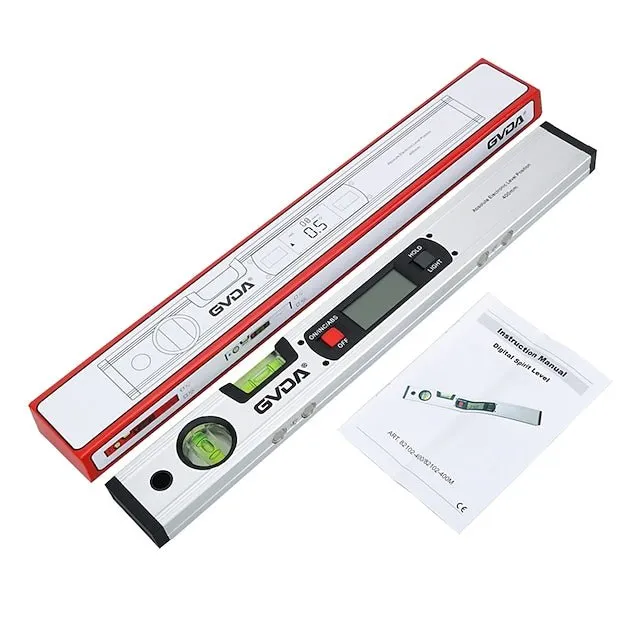

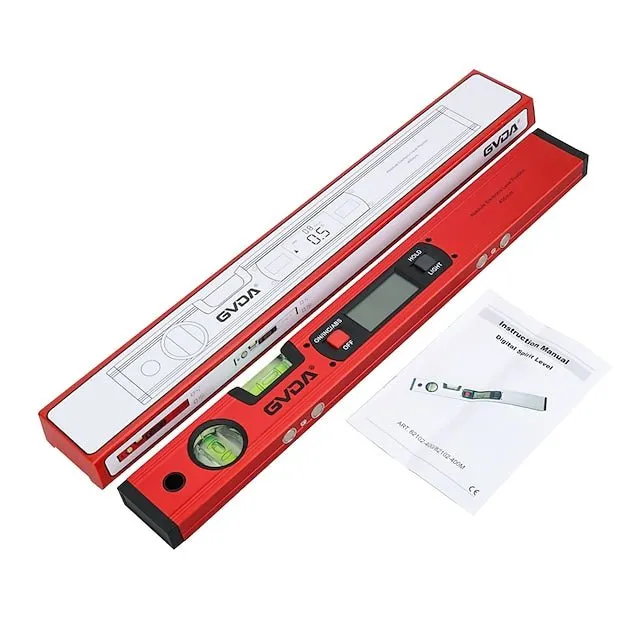

Package included
- 1PC Digital Level
- 1pc user manual
